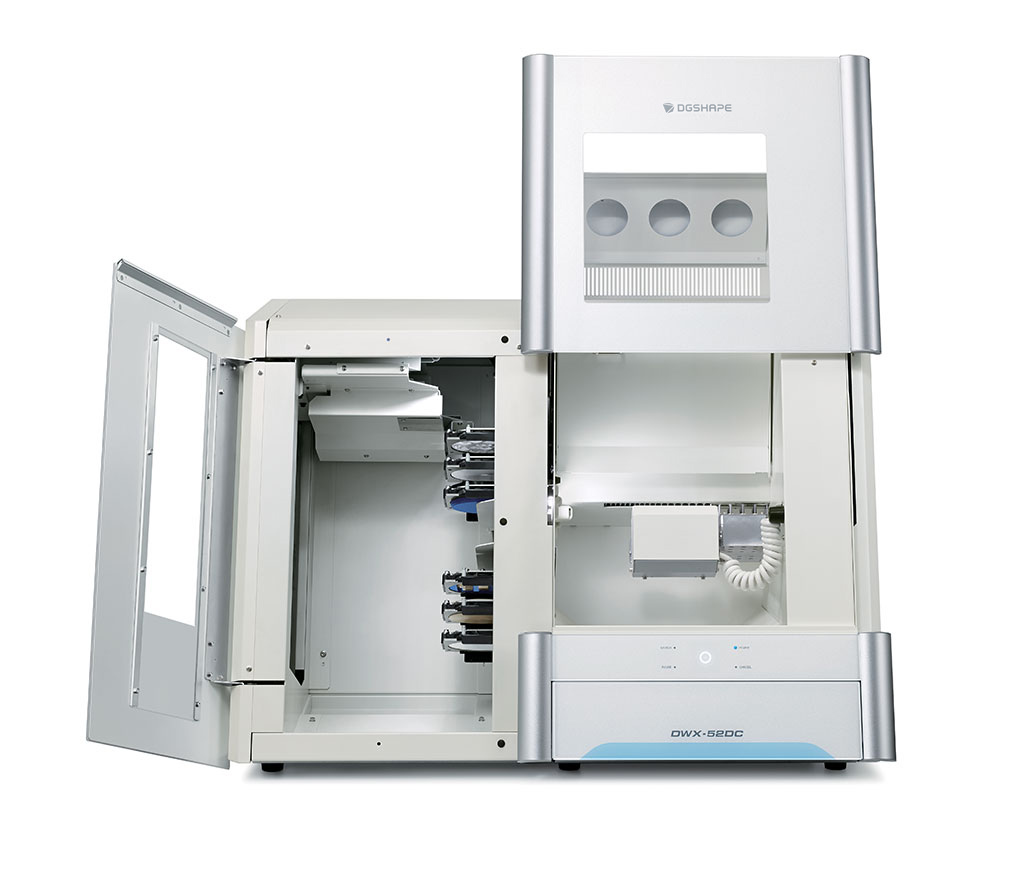

Roland DWX-52DC Dental Milling Machine

In stock

Highly Productive Unattended Milling

Power it on, let it go, and automatically mill numerous dental restoration jobs with complete unattended confidence.

DWX-52DC Dental Milling Machine Features

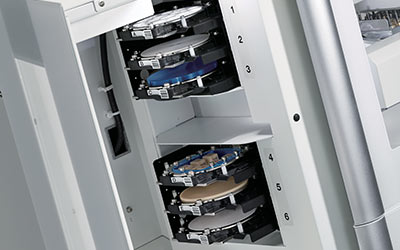

Automatic Disc Changer
(ADC)

Load the six O-Clamp material adapters with different shades of zirconia or any combination of material discs to suit your needs. Assign them with milling jobs and let the automatic disc changer do the rest.

Material adapters can be individually labeled and barcoded to enable VPanel recognition of each disc position. Organize job assignment via your CAM software for non-stop production..

ATC Ico

Automatic Tool Changer
(ATC)

Load the 15-station ATC with a variety of diamond coated, carbide and Roland hybrid tools to continuously mill jobs in different materials and multiple shades of zirconia without stopping production.

Intelligent Tool Changer

Part of the simplified VPanel operation, an ITC function automatically swaps out tools that have reached their user-defined lifespan with a designated “partner tool” without needing to pause production.

Buy it now

DWX-52DC Specifications

		DWX-52DC

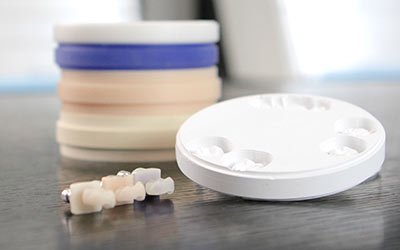

Cuttable material		Zirconia, Wax, PMMA, Composite resin, PEEK, Gypsum, Fiber reinforced resin, CoCr sinter metal
Loadable workpiece shape	Step section:	98.5 mm (diameter), height 10 mm
	Body section:	95 mm (diameter), height max. 35 mm Pin diameter: 6 mm
	Pin diameter:	6 mm
Loadable workpiece weight		Up to 850 g
Number of adapters housed		6
Operating speed	XYZ axis:	0.24 to 70.9 in./min.(6 to 1,800 mm/min.)
Spindle motor		Brushless DC Motor
Spindle speed		6,000 to 30,000 rpm
Rotary axis travel angle	A:	±360°
	B:	±30°
Number of burs housed		15
Attachable bur	Shank diameter:	4 mm
	Length:	40 to 55 mm
Compatible compressed air		0.2 MPa
Interface		USB
Control command set		RML-1, NC code
Power requirements		AC 100 V to 240 V ±10%, 50/60 Hz, 2.0 A (overvoltage category II, IEC60664-1)
Power consumption		Approx. 200 W
Operating noise	During operation:	70 dB (A) or less (when not cutting),
	During standby:	45 dB (A) or less
External dimensions	Width x Depth x Height:	34.6 x 26.0 x 23.6 in. (880 x 660 x 600 mm)
Weight:		105 kg (231.5 lbs.)
Installation environment		Indoor use, Altitude: Up to 2,000m (6,562 ft.), Temperature: 5 to 40 ℃ (41 to 104°F), Humidity: 35 to 80 % (no condensation), Ambient pollution degree: 2 (as specified by IEC 60664-1), Short-term temporaty overvoltage: 1440 V, Long-term temporaty overvoltage: 490 V
Included items		Power cord, Power plug adapter, USB cable, Manuals, Roland DG Software Package CD, Detection pin, Automatic correction jig, Pin-type material adapter, Hexagonal driver, Spanner, Milling bur holders, Milling bur positioner, Dust collection hoses, Dust collection hose adapter, Regulator, Cleaning tool, Option adapter labels, Material adapters

System requirements for USB connection

Operating system (OS)*	Windows® 7/8/8.1/10 (32 or 64 bit)
Optical drive	CD-ROM drive
USB cable	Use the included USB cable

Options

Item	Model	Description
Pin-type material adapter	ZV-52DC	Pin-type material jig for replacement
Material adapter	ZMA-52DC	Material adaptor for replacement
Cleaning tool	ZCT-4D	Cleaning tool for replacement
Milling bur holder	ZBH-4D	Milling bur holder for replacement
Spindle unit	ZS-4D	Spindle unit for replacement
Collet	ZC-4D	Collet for replacement
Spindle belt	ZSB-170	Spindle belt for replacement

Show More Show Less
